RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
Overview

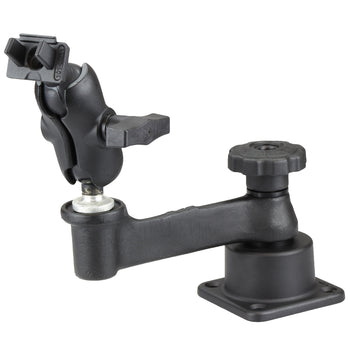

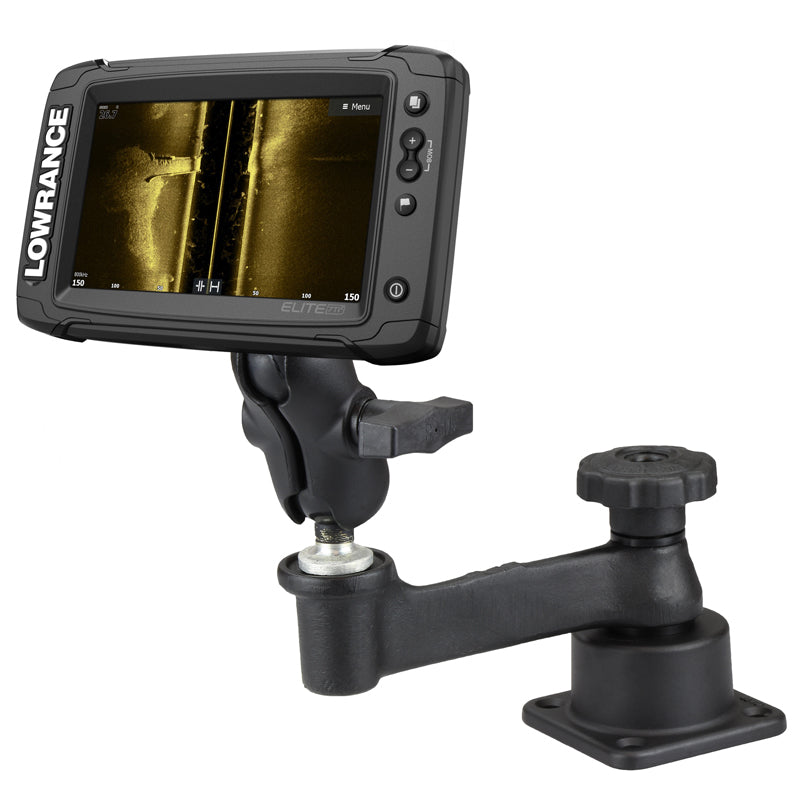

The RAM-109H-2B-B-LO11 consists of a 6" long straight swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds.
socket to socket length:
3.56"
hole pattern:
2.5" x 2.5"
plate size:
3.47" x 3.47"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
2.36 lb
