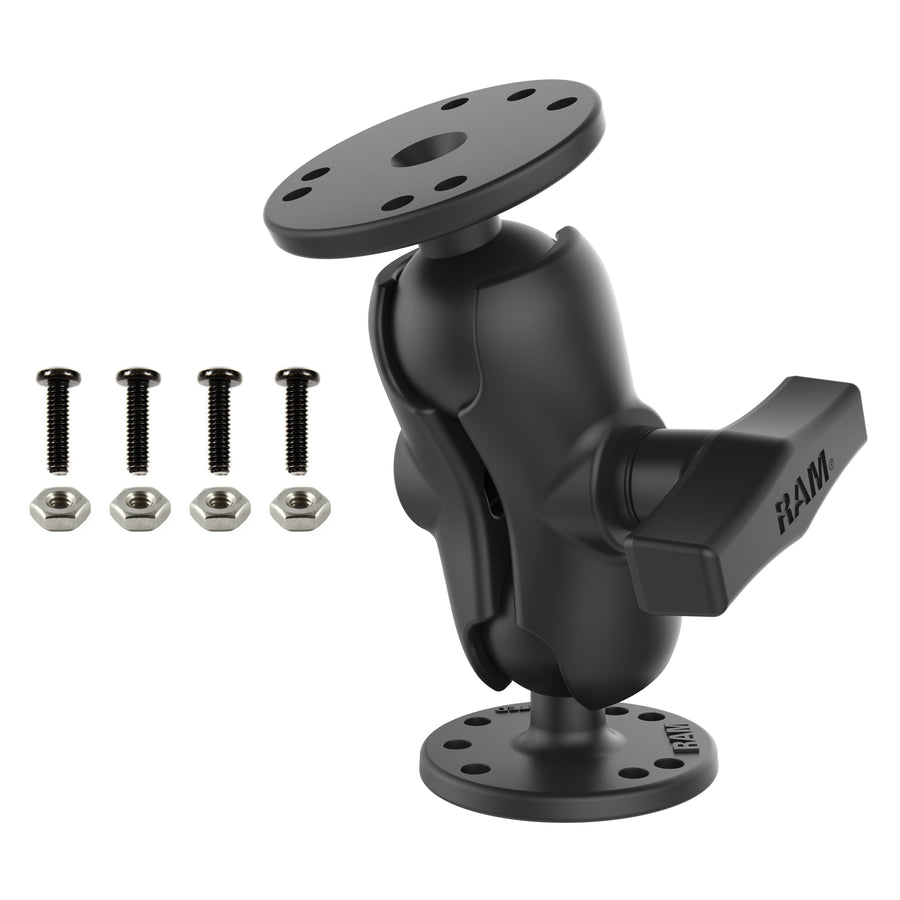

RAM® Double Ball Mount with Mounting Hardware
Part#: RAM-101U-B-ET1
UPC: 793442905032
Ball Icon C Size
Arm Icon Short Arm
$62.99

Overview

Universal double socket arm mount with two round bases. Both bases have the AMPS hole pattern. The mount is 5.24" tall at maximum extension and is collapsible. Constructed of marine grade aluminum with stainless hardware and black powder coat finish. Rubber ball and socket feature dampens shock and vibration. For most applications, mount will support up to 4 pounds. Comes with mounting hardware.

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Stainless Steel Nuts

product dimensions:

Overall Height: 5.225"

socket to socket length:

2.5"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.93 lb
