RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active5 & 3
Part #: RAM-101B2-TC-SAM29C-V3FCU UPC: 793442816581 Patented Features RAM® Tough-Case™ provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3 Includes RAM® Tough-Case™ holder, RAM® C size double ball mount, backing plate and hardwire charger for dashboard installation Supports the Tab Active3's 'No Battery Mode' feature RAM® Tough-Case™ has integrated 4ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked Integrated S Pen holder

Part #: RAM-101B2-TC-SAM29C-V3FCU UPC: 793442816581 Patented

Features

RAM® Tough-Case™ provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3

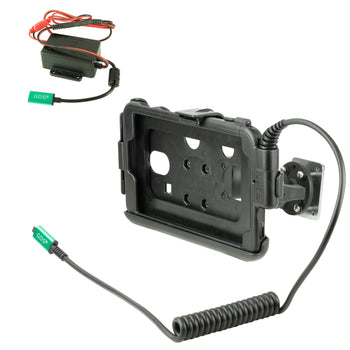

Includes RAM® Tough-Case™ holder, RAM® C size double ball mount, backing plate and hardwire charger for dashboard installation
Supports the Tab Active3's 'No Battery Mode' feature
RAM® Tough-Case™ has integrated 4ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked
Integrated S Pen holder

RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active5 & 3

Product Information

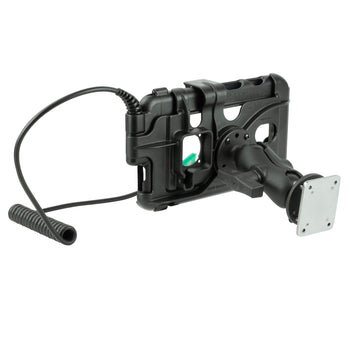

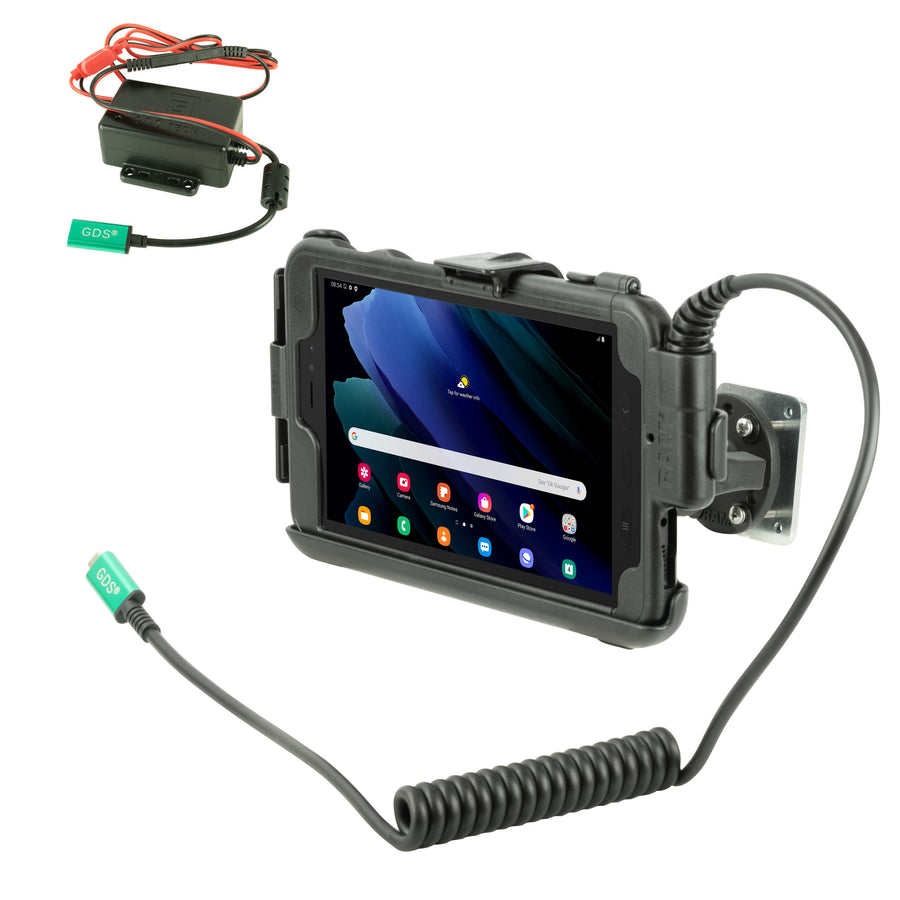

Overview	This RAM® Tough-Case™ bundle is a rugged vehicle mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing and hardwire charger. The RAM® Tough-Case™ is a two-piece enclosure for the Samsung Galaxy Tab Active5 & Tab Active3 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This bundle provides power to the device through the hardwire charger connected from the vehicle's battery to the RAM® Tough-Case™ via USB Type-C connection. This tethered USB Type-C connection perfectly supports the "No Battery Mode" feature, allowing you to remove the battery and remain connected to the tablet with all of its functions. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, short length double socket arm, and a GDS® modular hardwire charger with Power Delivery – an ideal solution for providing power to the Galaxy Tab Active5 & Tab Active3. Get the Heat Out!™ with RAM® Tough-Case™.

Product Information

Overview

This RAM® Tough-Case™ bundle is a rugged vehicle mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing and hardwire charger. The RAM® Tough-Case™ is a two-piece enclosure for the Samsung Galaxy Tab Active5 & Tab Active3 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This bundle provides power to the device through the hardwire charger connected from the vehicle's battery to the RAM® Tough-Case™ via USB Type-C connection. This tethered USB Type-C connection perfectly supports the "No Battery Mode" feature, allowing you to remove the battery and remain connected to the tablet with all of its functions. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, short length double socket arm, and a GDS® modular hardwire charger with Power Delivery – an ideal solution for providing power to the Galaxy Tab Active5 & Tab Active3. Get the Heat Out!™ with RAM® Tough-Case™.

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers Modular Hardwire Charger Cable Clamp Assembly
socket to socket length	2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
input voltage	12-24VDC
output voltage	5V @ 3A (15W) 9V @ 3A (27W) 12V @ 3A (36W) 15V @ 2.5A (37.5W)
power output	37.5W Total
output current	3A max
input connector	Female USB Type-C
input cable length	1.2 Meters including 2 Pole Flat Marine Connector
output cable length	150mm
operating temperature	-20°C to +70°C
storage temperature	-40°C to +85°C
regulatory	Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications	FCC, IC, CE RCM, WEEE, RoHS Compliant USB Power Delivery 2.0 and 3.0 Support
Warranty	3 year warranty
Weight	2.63 lb

RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active3

Video Thumbnail — YouTube video thumbnail for Uuf9odZCCmE

Questions about our products? Email us for support.

Patented

RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active5 & 3

Part#: RAM-101B2-TC-SAM29C-V3FCU

UPC: 793442816581

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$382.99

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM® Tough-Case™ provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3
Includes RAM® Tough-Case™ holder, RAM® C size double ball mount, backing plate and hardwire charger for dashboard installation
Supports the Tab Active3's 'No Battery Mode' feature
RAM® Tough-Case™ has integrated 4ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked
Integrated S Pen holder

hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Modular Hardwire Charger
Cable Clamp Assembly

socket to socket length:

2.5"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

input voltage:

12-24VDC

output voltage:

5V @ 3A (15W)
9V @ 3A (27W)
12V @ 3A (36W)
15V @ 2.5A (37.5W)

power output:

37.5W Total

output current:

3A max

input connector:

Female USB Type-C

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

150mm

operating temperature:

-20°C to +70°C

storage temperature:

-40°C to +85°C

regulatory:

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

certifications:

FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

Warranty:

3 year warranty

Weight:

2.63 lb
