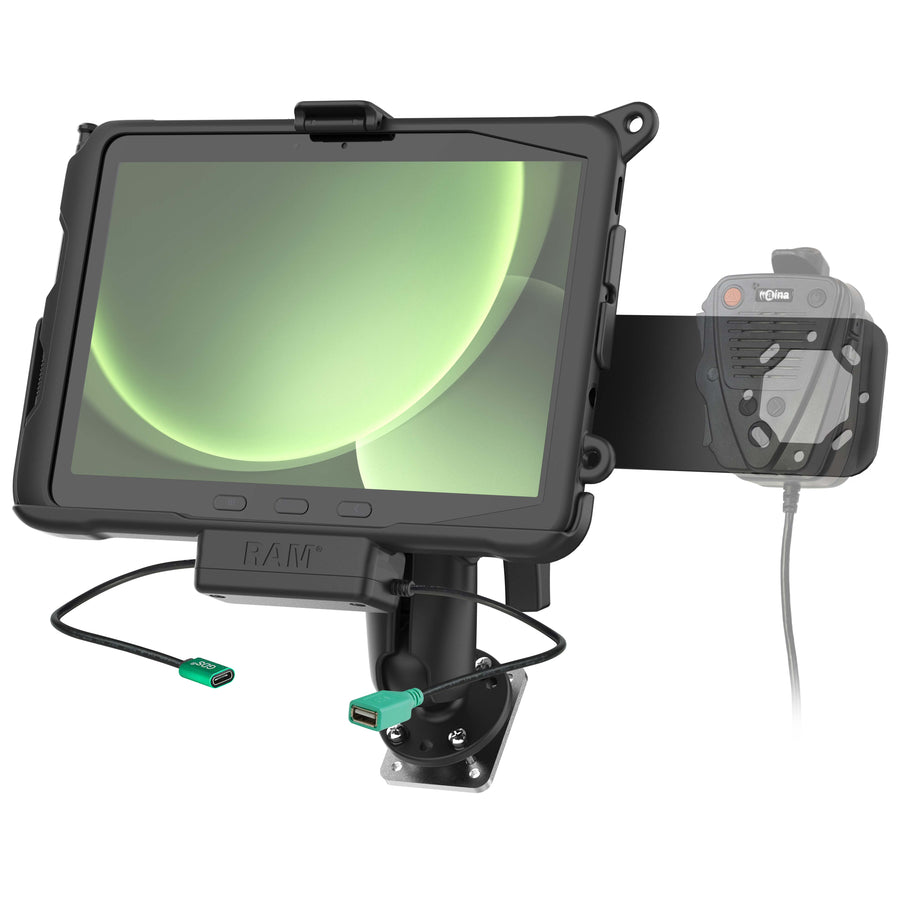

RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
Part #: RAM-101-SAM52CP-PTT1 UPC: 793442029936 Patented & Pats. Pend. Features Bundle includes RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power AINA's Voice Responder RSM recommended for bluetooth PTT; connect AINA's charging vehicle cradle via dock's USB-A pigtail Made of high-strength composites for durability and reliability in the most demanding environments Backed by a 3-year warranty

RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro

Part #: RAM-101-SAM52CP-PTT1 UPC: 793442029936 Patented & Pats. Pend.

Features

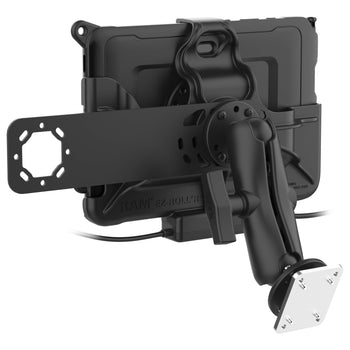

Bundle includes RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate

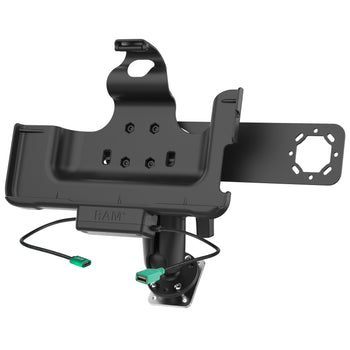

Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
AINA's Voice Responder RSM recommended for bluetooth PTT; connect AINA's charging vehicle cradle via dock's USB-A pigtail
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro

Product Information
Overview	The RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro (RAM-101-SAM52CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Samsung Tab Active4 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection and power from the hardwire charger, while the AINA Vehicle Charging Cradle connects via the dock's USB-A peripheral pigtail for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.

Product Information

Overview

The RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro (RAM-101-SAM52CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Samsung Tab Active4 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection and power from the hardwire charger, while the AINA Vehicle Charging Cradle connects via the dock's USB-A peripheral pigtail for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.

Specifications

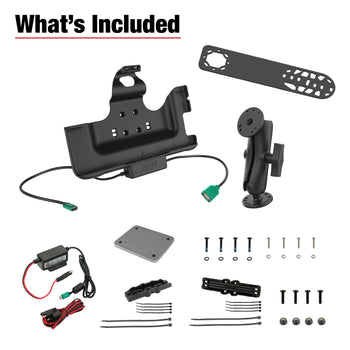

hardware included	Assembly Hardware Microphone Bracket Hardwire Charger (2) USB Cable Clamps Dashboard Backing Plate with Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
output voltage	5.3-5.4VDC
power output	5VDC
output current	500mA
input connector	USB Type-C Female
input cable length	250mm
output connector	USB 1.1 Type A
output cable length	250mm
peripheral output	500mAh
transfer speed	12Mbps
Weight	4.49 lb
