RAM^® Tough-Tap^™ Universal Trail Cam Mount
Part #: RAP-B-379-25201L-A-2520 UPC: 793442952562 Features Contains 1/4"x20 threaded RAM^® Tough Ball^™ for attaching almost any action camera, trail camera, or security camera Hand-screw directly into any fence post or tree for a near-hidden camera system Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Tough-Tap^™ Universal Trail Cam Mount

Part #: RAP-B-379-25201L-A-2520 UPC: 793442952562

Features

Contains 1/4"x20 threaded RAM^® Tough Ball^™ for attaching almost any action camera, trail camera, or security camera
Hand-screw directly into any fence post or tree for a near-hidden camera system
Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Tough-Tap<sup>™</sup> Universal Trail Cam Mount

Product Information

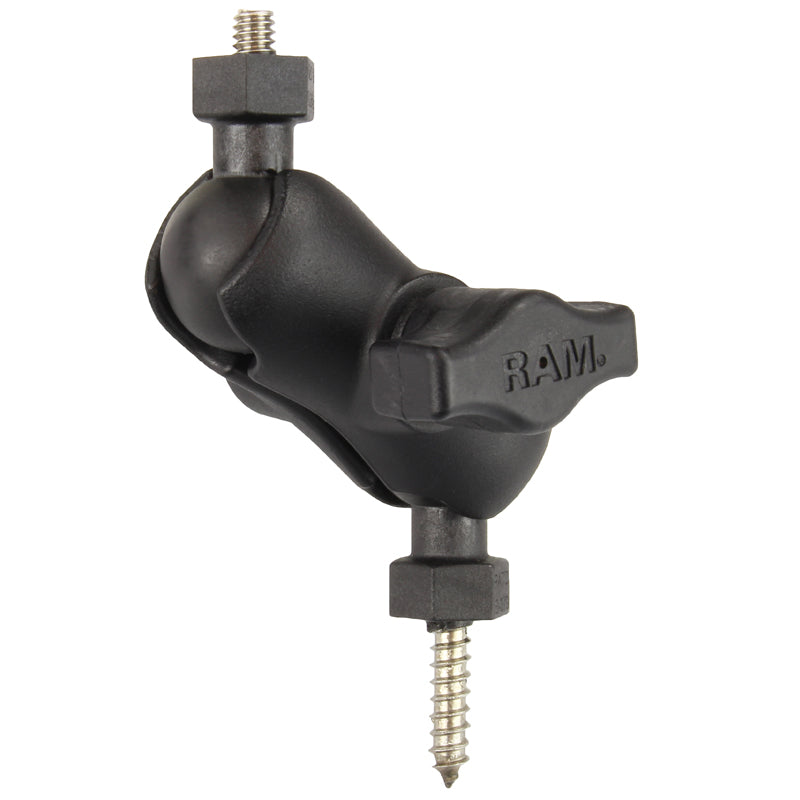

Overview	The RAM Tough-Tap uses a 1" lag bolt to mount a camera, motion sensor or even a phone into trees, fence posts and tree stands. The Tough-Tap consists of a short arm, a B-size ball with a 1" lag bolt at one end and a B-size ball with 1/4"-20 threads at the other. Whether you're broadcasting hunts and fishing outings or live producing videos from shooting competitions, RAM Mounts secures the cameras and provides unique angles.

Product Information

Overview

The RAM Tough-Tap uses a 1" lag bolt to mount a camera, motion sensor or even a phone into trees, fence posts and tree stands. The Tough-Tap consists of a short arm, a B-size ball with a 1" lag bolt at one end and a B-size ball with 1/4"-20 threads at the other. Whether you're broadcasting hunts and fishing outings or live producing videos from shooting competitions, RAM Mounts secures the cameras and provides unique angles.

Specifications
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Stationary Use: up to 5 lbs Heavy-Duty Use: 2 lb
materials	High strength composite Stainless steel threads
packaging type	Poly Bag
Weight	0.26 lb

Questions about our products? Email us for support.

RAM^® Tough-Tap^™ Universal Trail Cam Mount

Part#: RAP-B-379-25201L-A-2520

UPC: 793442952562

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$34.99

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Contains 1/4"x20 threaded RAM^® Tough Ball^™ for attaching almost any action camera, trail camera, or security camera
Hand-screw directly into any fence post or tree for a near-hidden camera system
Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Stationary Use: up to 5 lbs
Heavy-Duty Use: 2 lb

materials:

High strength composite
Stainless steel threads

packaging type:

Poly Bag

Weight:

0.26 lb
