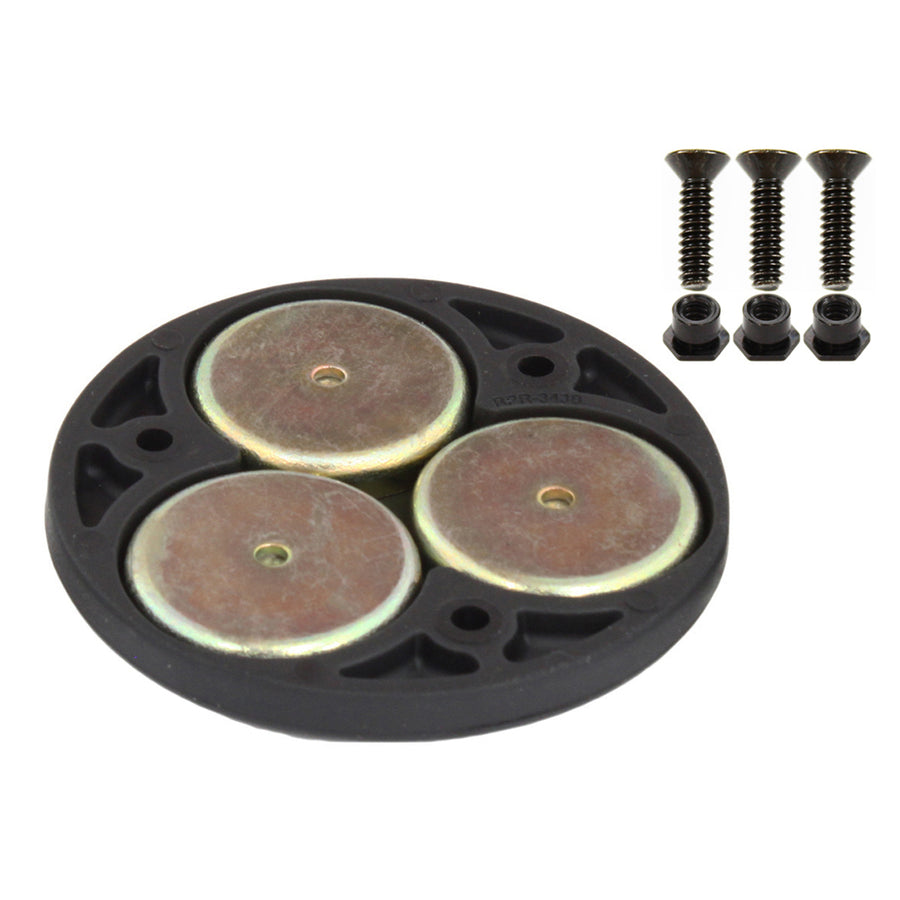

RAM^® Triple Magnetic Base Adapter
Part #: RAP-339U UPC: 793442914447

Product Information
Overview	One of the latest additions to the RAM product line is a new magnetic base. This simple adapter mates to your new or existing mount that has a RAM-B-202U base with ball. Once attached, you have a mount that will hold firm to ferrous metals like nothing else. Support any number of items without having to drill any holes to attach your mounting base. Simply put this product near the mounting surface and feel it almost jump out of your hand. Containing 3 rare earth magnets, you can imagine just how strongly this unique device is drawn to ferrous metals. The composite adapter designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface. Ideally suited for many applications, you're sure to find many ways to use your new magnetic mount at work, home, on the go, or at play.

Product Information

Overview

One of the latest additions to the RAM product line is a new magnetic base. This simple adapter mates to your new or existing mount that has a RAM-B-202U base with ball. Once attached, you have a mount that will hold firm to ferrous metals like nothing else. Support any number of items without having to drill any holes to attach your mounting base. Simply put this product near the mounting surface and feel it almost jump out of your hand. Containing 3 rare earth magnets, you can imagine just how strongly this unique device is drawn to ferrous metals. The composite adapter designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface. Ideally suited for many applications, you're sure to find many ways to use your new magnetic mount at work, home, on the go, or at play.

Specifications
hardware included	(3) Rare Earth Magnets (3) #6-32 x 1/2" Machine Screws (3) #6-32 Nut Inserts
hole pattern	3-Hole 120-Degree: 1.812" Diameter
materials	Rubber
packaging type	Poly Bag
Weight	0.71 lb

RAM<sup>®</sup> Triple Magnetic Base Adapter

Questions about our products? Email us for support.

RAM^® Triple Magnetic Base Adapter

Part#: RAP-339U

UPC: 793442914447

$20.99

Overview

hardware included:

(3) Rare Earth Magnets
(3) #6-32 x 1/2" Machine Screws
(3) #6-32 Nut Inserts

hole pattern:

3-Hole 120-Degree: 1.812" Diameter

materials:

Rubber

packaging type:

Poly Bag

Weight:

0.71 lb

Print

Questions & Answers

Have a Question?

Ask a Question

Can the magnets be flipped? Asking because the case I want to use with this has magnets in it so I need to make sure the polarity works for it to attach to this.

No, the magnets used in the RAP-339U have a steel cup that leaves the face of the magnet open on one side and is threaded on the other to allow you to screw the base adapter to one of the 2.5" diameter RAM round plate bases. The steel cup means that the magnet only works on one side and you'd have no way of attaching the adapter plate (or magnets) to anything else.
