Overview

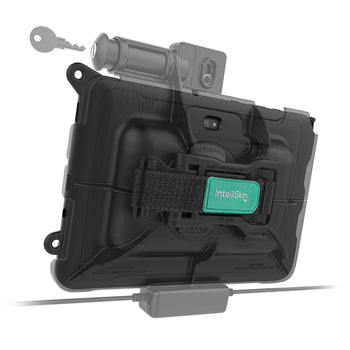

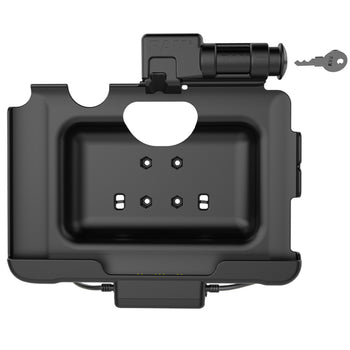

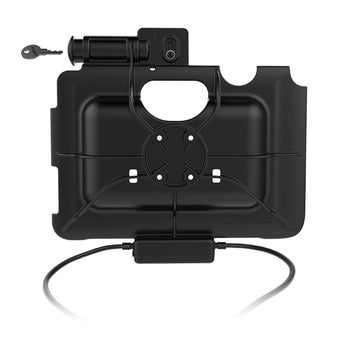

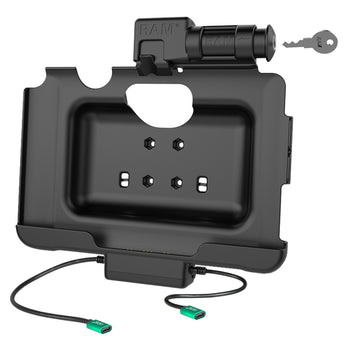

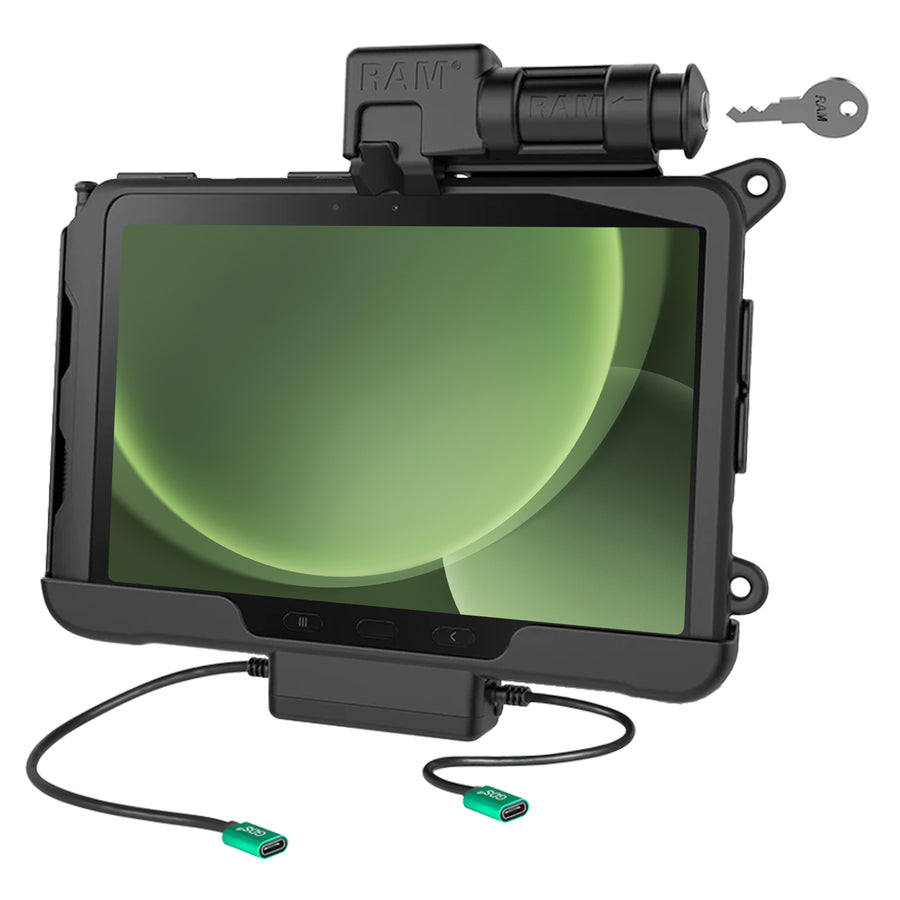

The RAM® Locking USB-C Powered Dock + USB-C Data for Tab Active4 Pro (RAM-HOL-SAM57CPKL-CU) is designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key-lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
Features
- Key locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector
- Connect one additional peripheral via USB Type-C cable
- RAM® Mounts Compatible™ with AMPS 4-hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
215mm
output connector:
USB Type-C Female
output cable length:
215mm
peripheral output:
500mAh
transfer speed:
480Mbps
Warranty:
3 year warranty
Weight:
1.25 lb
