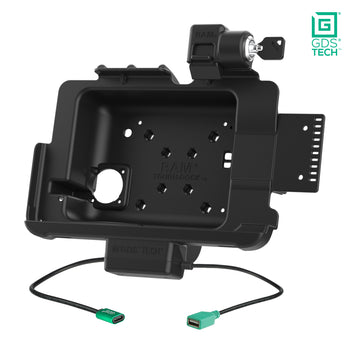

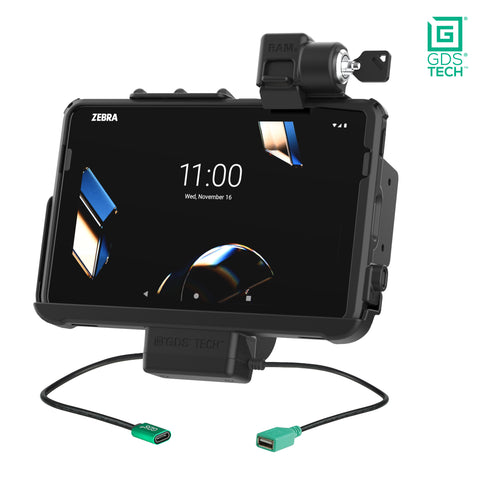

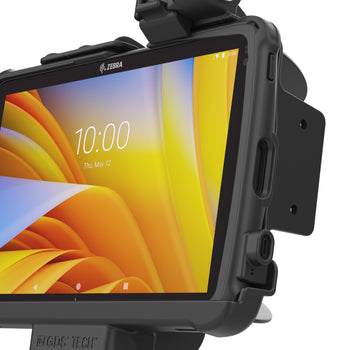

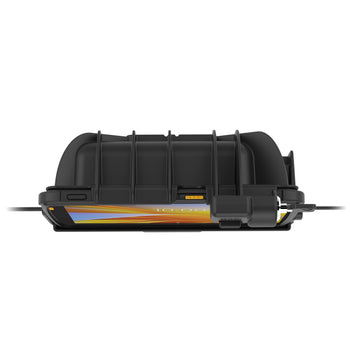

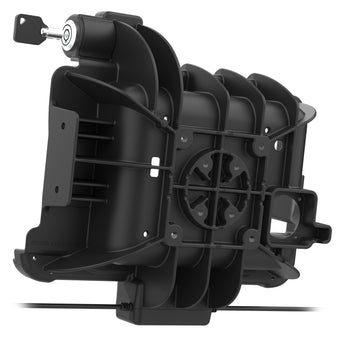

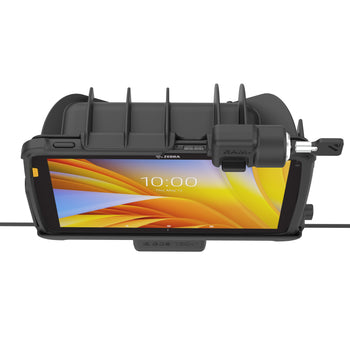

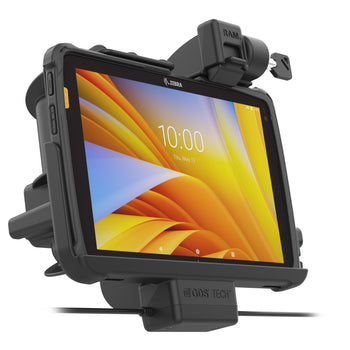

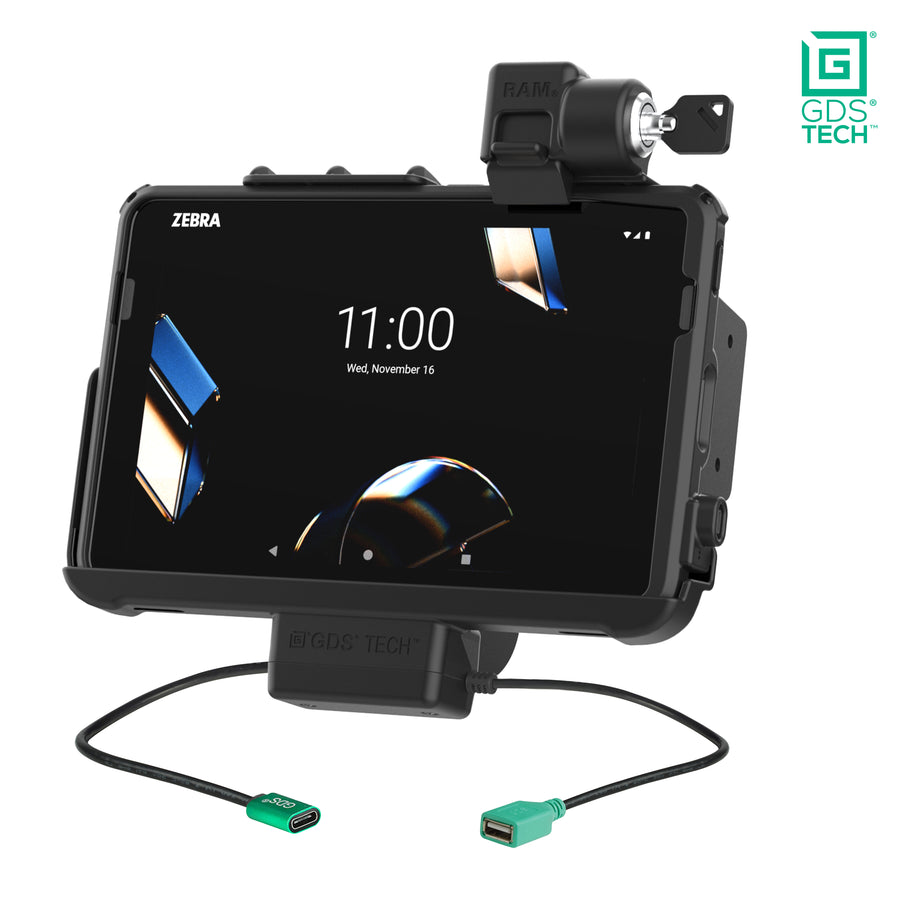

Locking GDS® Power + Data Dock for Zebra ET4x 10" with IntelliSkin® | |
---|---|
Part #:
RAM-GDS-DOCKL-ZE21PDU
UPC:
793442202940
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (2) Keys (1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties |
hole pattern | 75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 20V @ 3A |
power output | 60W |
input connector | USB Type-C |
input cable length | 215mm |
output connector | USB 2.0 Type A |
output cable length | 215mm |
peripheral output | 500mAh |
transfer speed | 12Mbps |
certifications | RoHS WEEE CE UKCA |
Warranty | 3 year warranty |
Weight | 1.84 lb |
Additional Information | IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®. |
Compatible Devices
Zebra
ET40 10" Tablet with IntelliSkin® Next Gen
ET45 10" Tablet with IntelliSkin® Next Gen
Compatible Devices
Zebra
ET40 10" Tablet with IntelliSkin® Next Gen
ET45 10" Tablet with IntelliSkin® Next Gen

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCKL-ZE21PDU!
We'll email you once the item is available.
Overview
Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
Features
- Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
hardware included:
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 20V @ 3A
power output:
60W
input connector:
USB Type-C
input cable length:
215mm
output connector:
USB 2.0 Type A
output cable length:
215mm
peripheral output:
500mAh
transfer speed:
12Mbps
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
1.84 lb
Additional Information:
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
