Patented & Pats. Pend.

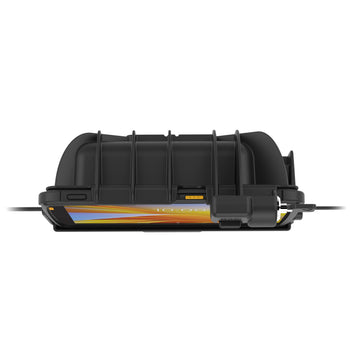

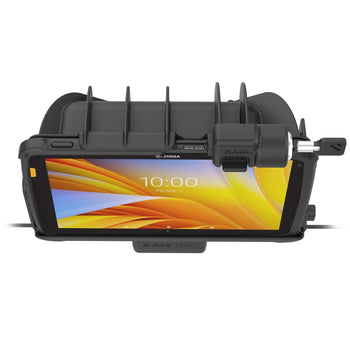

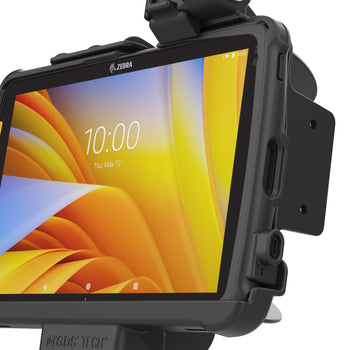

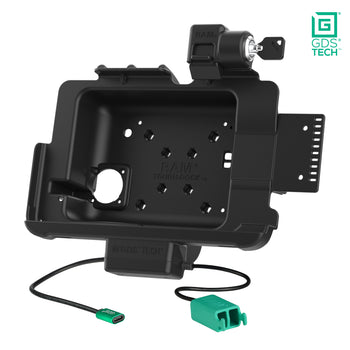

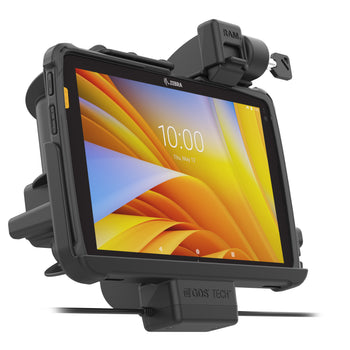

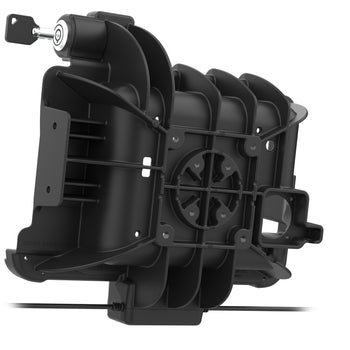

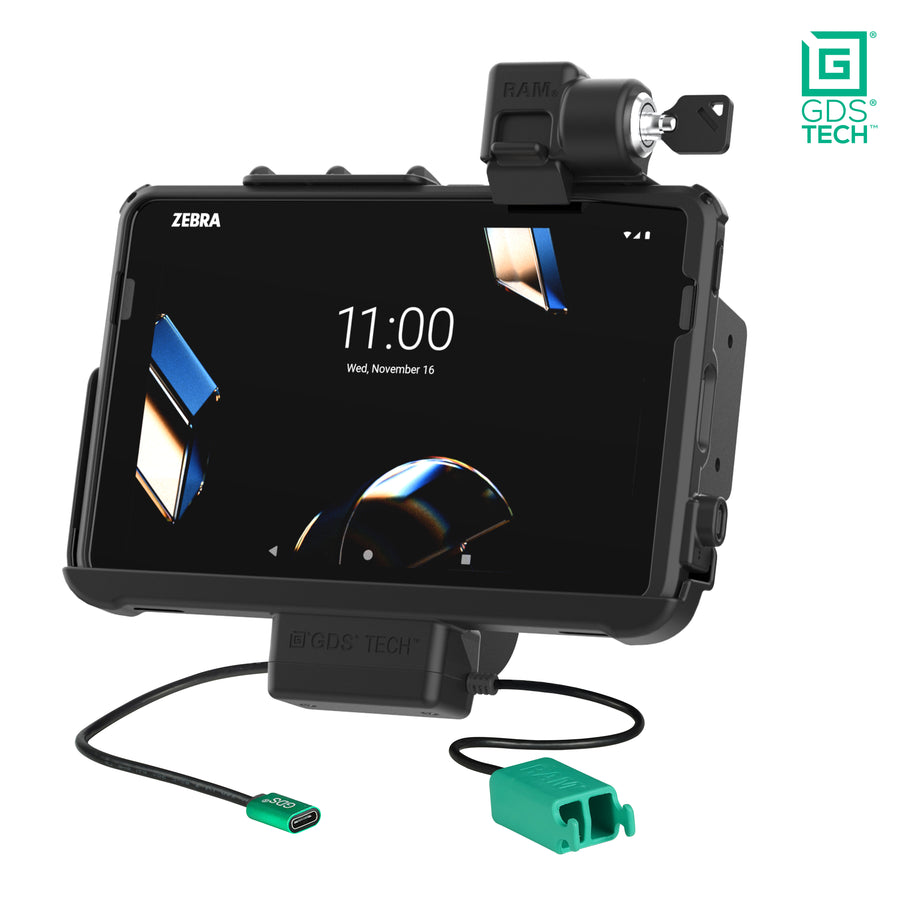

Locking GDS® Power + Dual USB Dock for Zebra ET4x 10" with IntelliSkin®
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKL-ZE21PD2U
UPC: 793442010330
$284.99

Overview

Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®

Features

  • Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

hardware included:

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern:

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 20V @ 3A

power output:

60W

input connector:

USB Type-C

input cable length:

215mm

output connector:

(2) USB 2.0 Type A

output cable length:

215mm

peripheral output:

900mAh (per port)

transfer speed:

12Mbps

certifications:

RoHS
WEEE
FCC
CE
ICES
UKCA

Warranty:

3 year warranty

Weight:

1.93 lb

Additional Information:

IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
