Overview

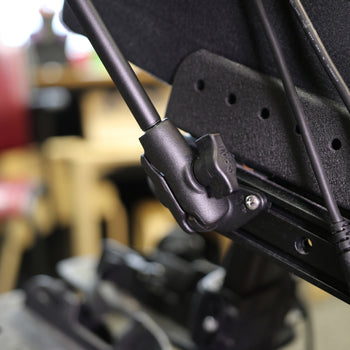

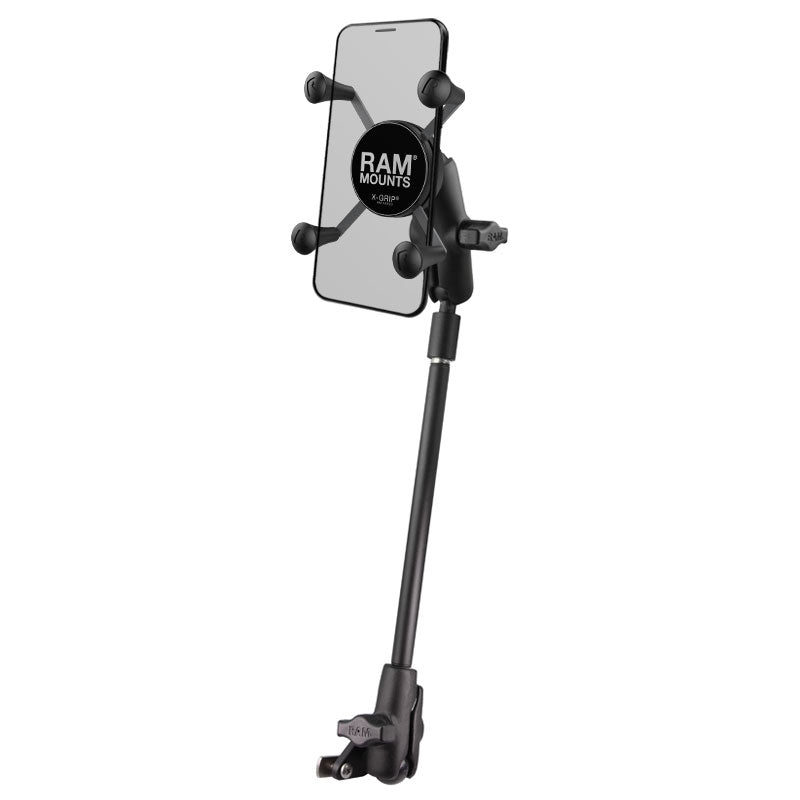

This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, 9" pipe extension, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max
t bolt dimensions:
Large: .48" x .95"
Small: .375" x .593"
hole pattern:
2-Hole AMPS: 1.912"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Retail Bag
Weight:
1.1 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
I noticed my phone can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
