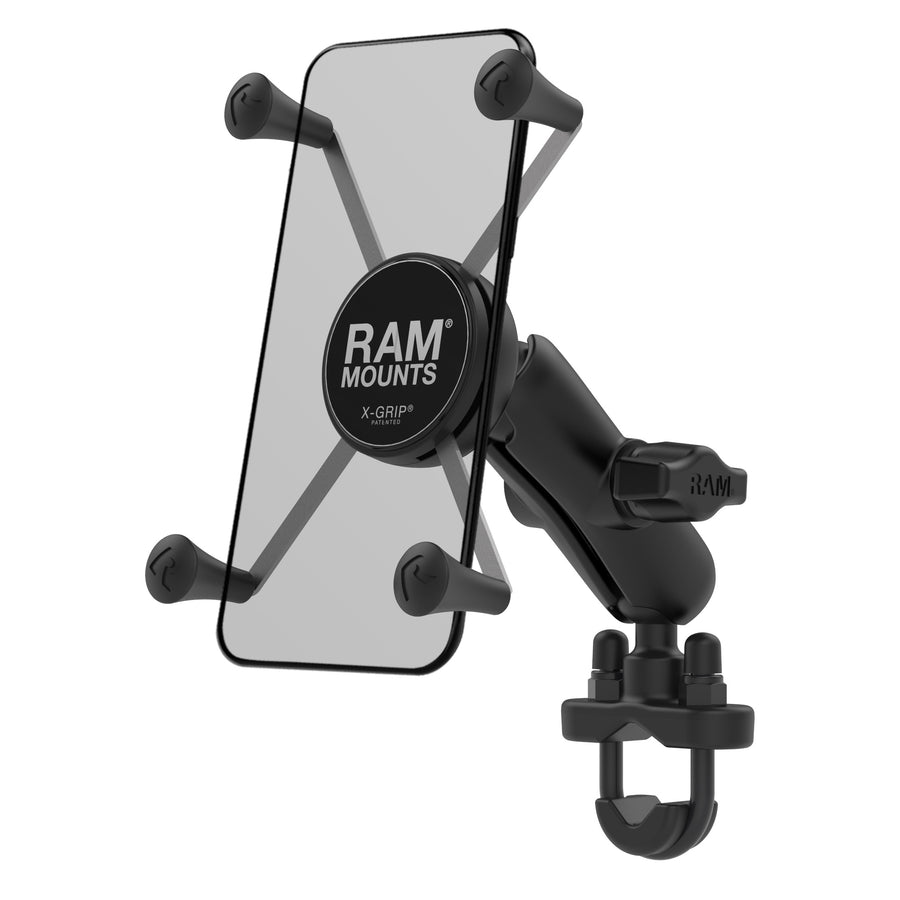

RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Medium
B Size
Medium Arm
$75.49
Overview
Ideal for handlebars, the RAM-B-149Z-UN10U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. In addition, hardware is included to accommodate rails from .5" - 1.25" in diameter. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.78 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Instructions
Documents
Questions & Answers
Have a Question?
-
I don't see my phone listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this holder in the product information section. If you want to make sure your tablet will fit in this holder you can measure your tablet to make sure it falls within the compatible dimensions.
-
Does this have vibration dampening?
You will want to look at RAM-B-149Z-UN10-462
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
