Overview

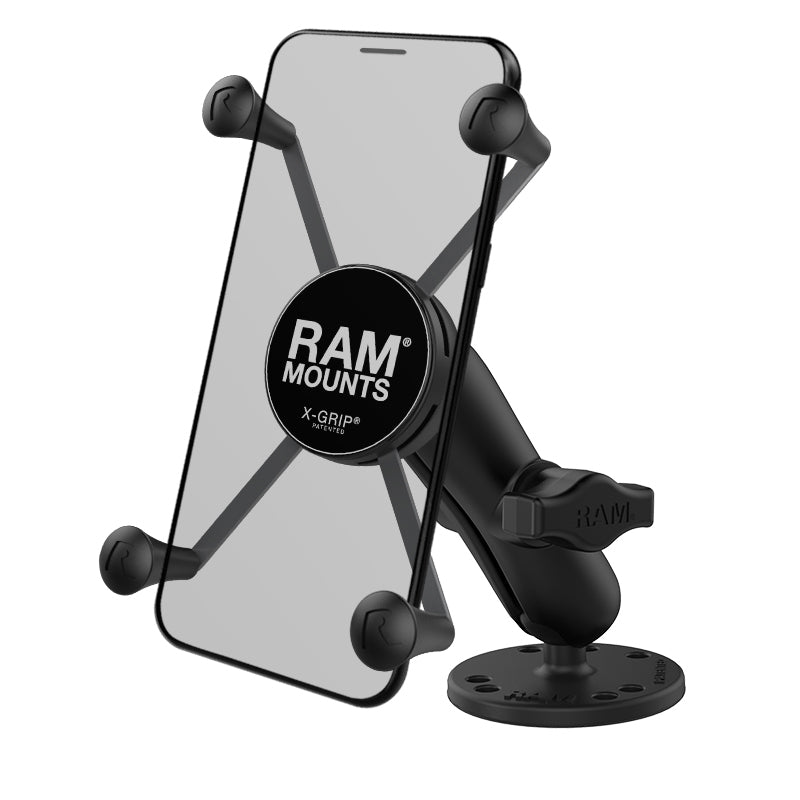

The RAM-B-138-UN10 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- Spring-loaded 'X' design for large phones features rubber caps and sports great holding power; includes optional device tether for peace of mind during rugged use
- Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Retail Bag
Weight:
0.7 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Questions & Answers
Have a Question?
-
Does this SKU include the hardware needed to bolt it to a flat surface?
No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
