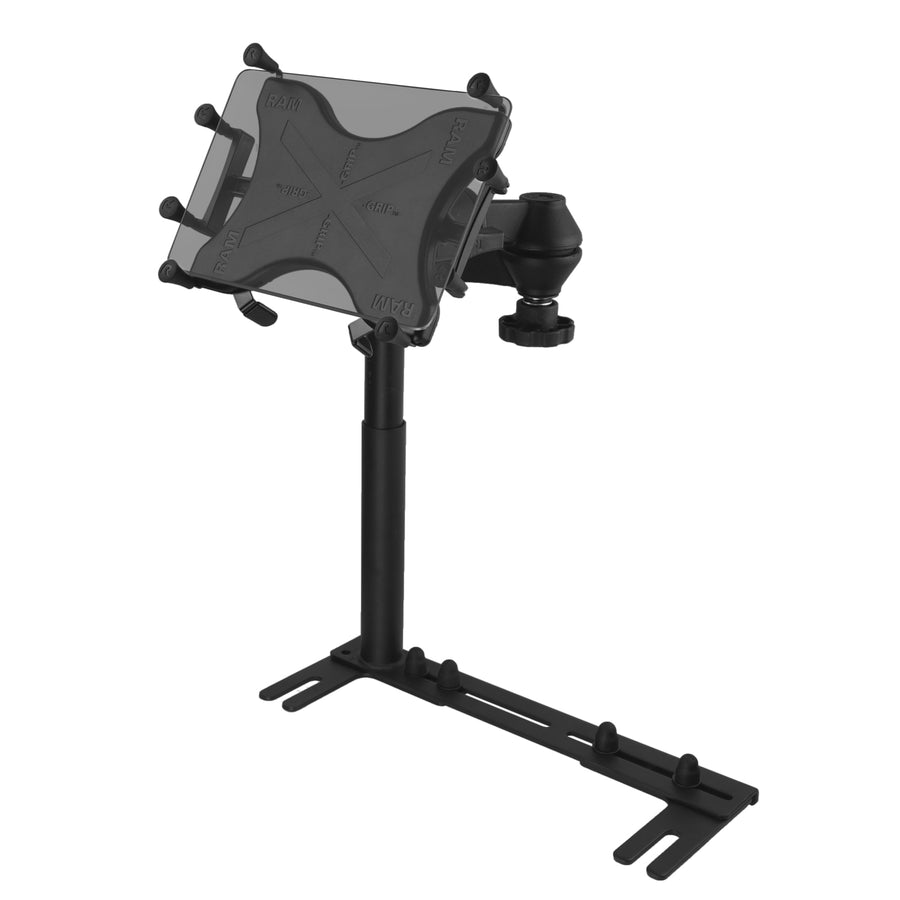

RAM® X-Grip® 9-11" Tablet Mount with No-Drill™ Universal Base
$370.49
Floor Mount
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal device placement
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 9"-11" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
RAM® X-Grip® 9-11" Tablet Mount with No-Drill™ Universal Base
Overview
This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 9"-11" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
hardware included
Assembly Hardware
Stabilizer Foot
holder dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine grade-aluminum
High strength composite
packaging type
Box
Weight
12.18 lb
Additional Information
Will this mount install in your vehicle? Learn more by following the steps in this document:
Universal Vehicle Laptop Mount Compatibility Guide
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
Universal Vehicle Laptop Mount Compatibility Guide
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
