• Over the hump design allows for excellent mount placement.
  • Quick installation with no drilling needed.
  • Angled step moves mount away from passenger leg space.
  • Rock solid construction with a lifetime warranty.
Print Details

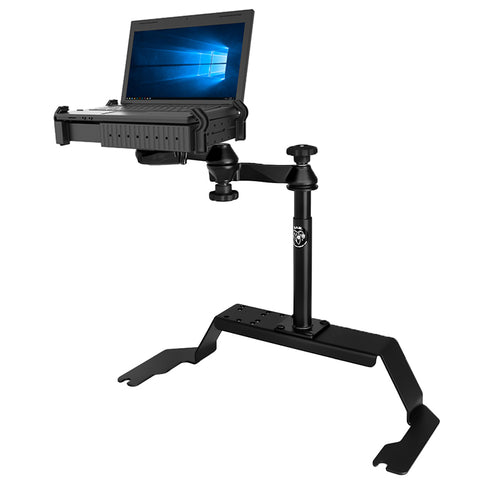

RAM® No-Drill™ Laptop Mount for '94-99 Chevy C/K + More
Part#:RAM-VB-103-SW1 UPC:793442900556 Patented

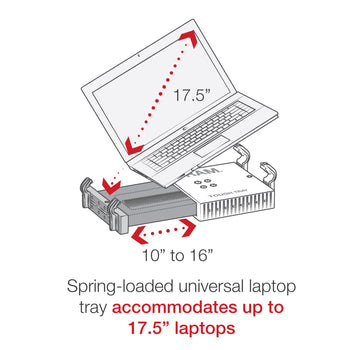

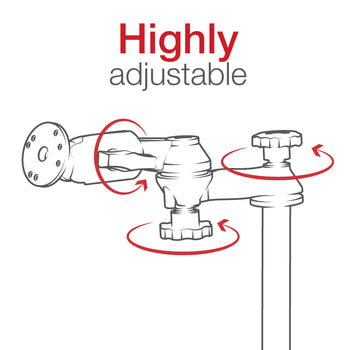

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

hardware included

Assembly Hardware

tray dimensions

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern

Seat Bolt Distance: 23.13" center to center
(Front right driver bolt, front left passenger bolt)

ball size

C Size (1.5")


Powder coated steel
Marine-grade aluminum
High strength composite

packaging type



19.0 lb

Additional Information

This base may not work with the factory installed center console or with 4WD levers that are on the floor. Drilling may be required for vehicles with a bench seat. Some models have factory installed accessories that prevent installation.
