$44.49

Features

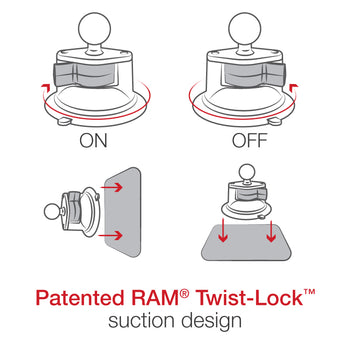

  • RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
  • Includes B size medium length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Print Details

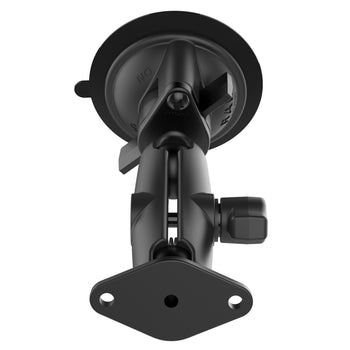

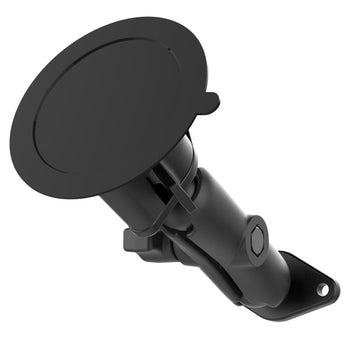

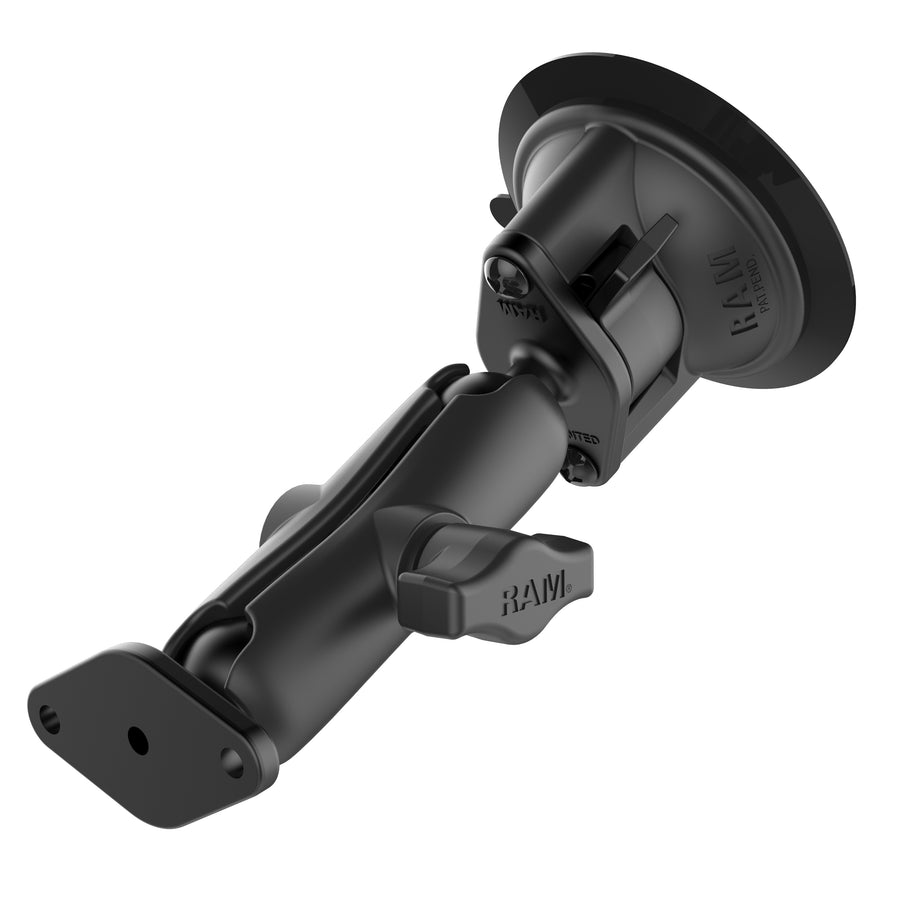

RAM® Twist-Lock™ Suction Cup Double Ball Mount
Part#:RAM-B-166U UPC:793442901041 Patented

Overview

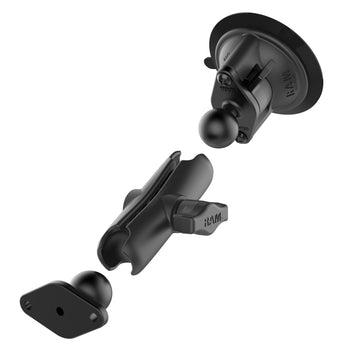

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disks. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM® cradles.

hardware included

Assembly Hardware

product dimensions

Overall Height: 6.69"

suction size

3.3" Diameter

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

plate size

2.43" x 1.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.64 lb

Components

RAM® Double Socket Arm RAM-B-201U $18.99
RAM® Diamond Ball Base RAM-B-238U $8.99
